STT-shaft twist tester NO
STT R100 NO and STT R150 NO
Simply make twist structures visible
The handy devices STT R100 NO and STT R150 NO are particularly suitable for direct use in the production environment. By placing the shaft twist tester NO device on the test object surface of the sealing seat, existing twist structures are made immediately visible to the eye. If the shaft to be tested is mounted on a prism table or between rotatable tips, the location dependency of the surface structure of the sealing seat can be checked quickly and easily by rotating the shaft with the test device in place.
Application background
Measurement method
The handy devices STT R100 NO and STT R150 NO are particularly suitable for use directly in the production environment. By placing the surface lead testing device on the test piece surface of the sealing seat, existing twist structures are made immediately visible to the eye. If the shaft to be tested is mounted on a prism table or between rotatable tips, the location independence of the surface structure of the sealing seat can be checked quickly and easily by rotating the shaft with the test device in place.
The hand-held device shaft twist tester NO is designed for test shaft diameters from 5mm to 200mm. The STT R150 NO handheld tester enables the testing of shafts with a sealing seat diameter of up to 300 mm. Thanks to the compact, robust aluminum housing and the battery-operated laser, the tester is always ready to hand and ready for use even in rough production conditions. In addition, the test device STT R100 NO offers a connection option for a tripod (1 / 4´´ 20 UNC).
Specifications
Technical specifications
- Twist period measuring range of STT NO: DP 20 - 500 μm
- Twist depth: Dt> = 200 nm *
- Axial back focus: 15 mm
- Shaft diameter: 5 – 300 mm (STT R150 NO up to 300 mm)
- Illumination source: laser diode module laser class 2
- Power supply: 6 V battery
* Specification for Rz = 2 μm (specification depends on roughness and twist period, permissible roughness. Ra 0.1 – 0.5 μm)
Optional accessories
Some technical useful accessories

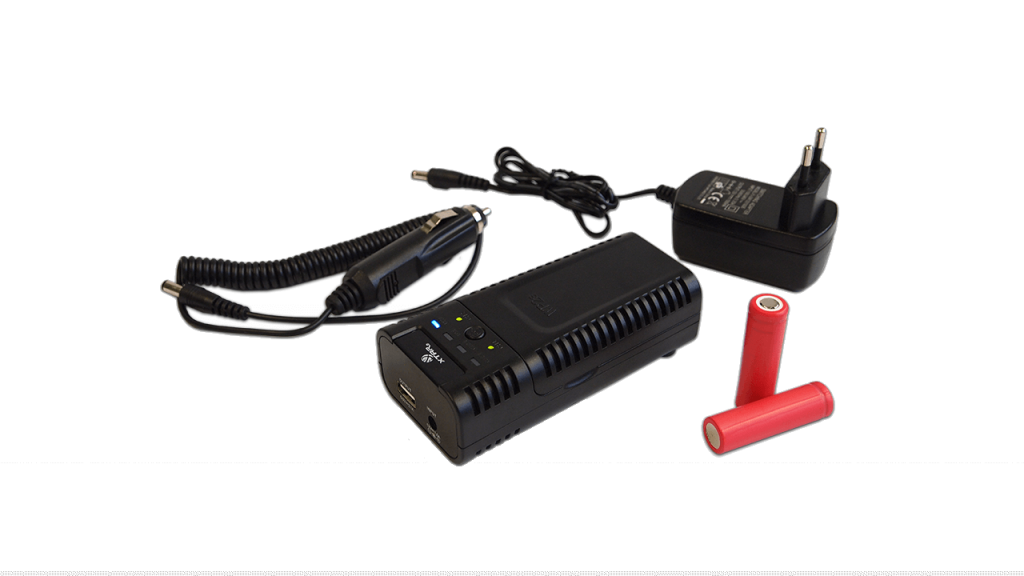

- Battery charger for STT
- Charger + 2x battery (similar to picture)
- Voltage (batteries): 3.6 volts (branded lithium-ion batteries)
- high quality universal 2-channel charger
- LED status display
- This article is suitable for the following models: STT NO, STT NK, STT NV
